Transparent Clear Cast Acrylic Sheet for Soundproofing
Introduction
JINBAO PLASTIC offers Transparent Clear Cast Acrylic Sheets designed for applications requiring both high visibility and acoustic insulation.
As a professional factory with 26 years of history, JINBAO uses 100% virgin Mitsubishi/Lucite raw materials to produce cast acrylic that achieves 94% light transmittance—higher than standard glass—while serving as an effective sound barrier for highway walls, machine enclosures, and quiet-room glazing.
Key Features
High Transparency: 94% light transmission allows for clear views, maintaining aesthetics in sound wall applications.
Soundproofing Capability: The dense cast acrylic structure acts as a barrier to airborne noise.
Weather Resistance: UV-stable formulation ensures no fading or yellowing for 8–10 years outdoor.
Precision Manufacturing: Thickness tolerance is controlled within ±0.1mm, ensuring consistent fit in frames and fittings.
Fabrication Friendly: Excellent performance in laser cutting, UV printing, and gluing without cracking or yellowing.
High Strength: Tensile strength of 760 kg/cm² and impact resistance far superior to glass.

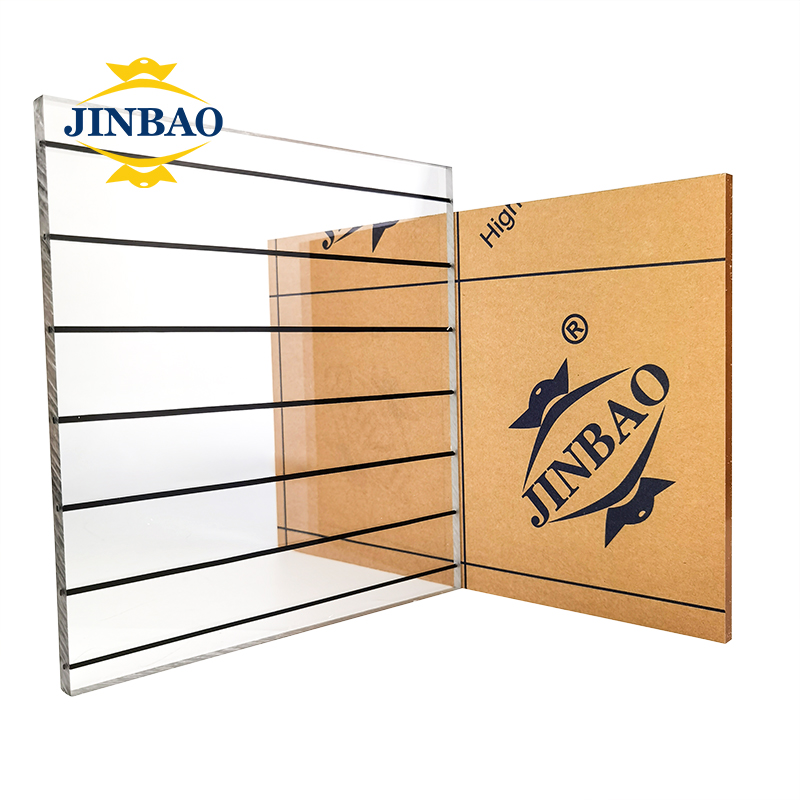

![Transparent Clear Cast Acrylic Sheet for Soundproofing]( "Transparent Clear Cast Acrylic Sheet for Soundproofing")
Technical Specifications (Table)
Property | Value |
Material | 100% Virgin Mitsubishi/Lucite Cast Acrylic |
Light Transmittance | 94% |
Thickness Range | 1.5mm – 300mm |
Standard Sizes | 1220×2440mm, 2050×3050mm, 1500×3000mm, etc. |
Rockwell Hardness | M-100 |
Tensile Strength | 760 kg/cm² |
Heat Distortion Temp | 100°C |
Water Absorption (24h) | 0.30% |
Thermal Forming Temp | 140°C – 180°C |
Applications
Sound Barriers: Transparent noise walls for highways, railways, and bridges.
Architectural Glazing: Windows, skylights, and partitions where noise reduction is desired.
Industrial Enclosures: Clear acoustic guards for noisy machinery.
Display & Signage: High-clarity panels for signs, displays, and furniture.
Why Choose JINBAO PLASTIC?
JINBAO PLASTIC operates with a strict quality control system, supervising the entire process from raw material sourcing to final delivery.
With 35 production lines and a dedicated delivery department, we ensure fast lead times and regular progress updates.
Our team of 200+ sales professionals and 24-hour after-sales service supports customers in over 100 countries.
FAQ
Q1: What is the soundproofing performance of this acrylic sheet?
A: Cast acrylic provides significant noise reduction due to its density and mass, commonly used in sound barrier applications to block traffic and industrial noise.
Q2: Will the clear acrylic turn yellow outdoors?
A: No, JINBAO uses pure virgin raw materials (Mitsubishi/Lucite), guaranteeing no fading or yellowing for 8–10 years in outdoor environments.
Q3: Can you produce custom sizes for large sound barrier projects?
A: Yes, we offer a wide range of standard sizes (up to 2050×3050mm) and can manufacture custom sizes according to customer requirements.
Q4: Is this material suitable for thermoforming?
A: Yes, the thermal forming temperature range is 140°C–180°C, allowing for easy bending and shaping for curved sound walls.
CTA
Get a Quote for High-Performance Soundproof Acrylic
Contact JINBAO PLASTIC today for factory-direct pricing and technical support.
Inquire Now & Get a Free Quote within 24 Hours
