JINBAO White Diffusion Acrylic Tubes are the industry standard for creating uniform, soft lighting. Available in Opal (Milky) and Frosted (Satin) finishes, these tubes hide LED hotspots while maximizing light output. Ideal for pendant lights, retail displays, and illuminated signage.
Acrylic Tube
JINBAO

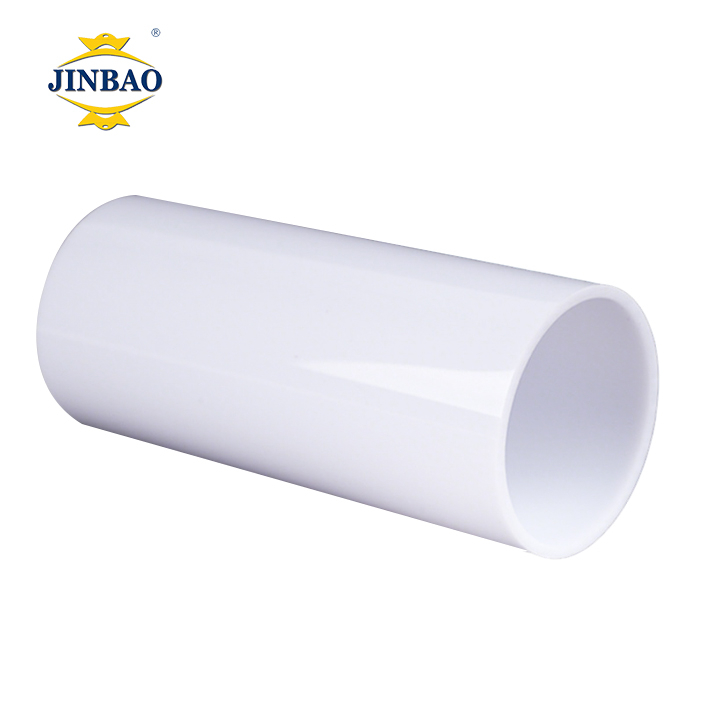

For lighting fixture manufacturers and architectural designers seeking the perfect glow, Jinan Jinbao Plastic Co., Ltd. offers our White Diffusion Acrylic Tube.
Standard white acrylic often blocks too much light or allows LED "hotspots" to show through. JINBAO’s Diffusion Grade tubes are formulated with special light-scattering particles dispersed throughout the matrix. This technology ensures smooth, even illumination that hides internal light sources (strips/bulbs) while maintaining high transmission efficiency. Whether you need a bright "Opal" for high-output fixtures or a soft "Satin" for decorative pendants, we have the solution.
Uniform Diffusion: Eliminates the pixelated look of LED strips, creating a solid bar of light. Perfect for modern linear lighting.
High Transmission Options:
Opal White: ~30-50% transmission for maximum hiding power (looks white when off).
Frost/Satin: ~70-85% transmission for high brightness (looks translucent when off).
UV Resistant: Manufactured with UV-stable virgin PMMA; will not yellow or become brittle for 10+ years, even in outdoor bollard lights.
Seamless Aesthetics: Extruded or Cast options provide a smooth, 360-degree seamless cylinder with no visible join lines to disrupt the light.
Impact Durable: 10x stronger than glass diffusers and shatter-resistant, making it safer for overhead installations and public spaces.
Specification | Details |
Material | 100% Virgin PMMA with Diffusion Additives |
Finish Types | Opal (Glossy White), Satin (Frosted/Matte), Sandblasted |
Diameter (OD) | 10mm – 500mm (Popular: 50mm, 100mm) |
Wall Thickness | 1.5mm – 10mm (Thinner = More transmission) |
Length | Standard 2000mm / Cut to Size |
Light Transmission | Customizable (Standard Opal ~40%, Satin ~80%) |
Working Temp | -40°C to +80°C |
Certifications | CE, RoHS, UL94 HB (Flammability) |
Linear LED Fixtures: Suspended tube lights for offices and retail stores.
Decorative Lighting: Modern chandeliers, wall sconces, and glowing furniture legs.
Event Design: Illuminated columns and light sticks for concerts and weddings.
Signage: Backlit cylindrical logos and wayfinding totems.
Light Lab Testing: We can test your specific LED strip inside our tubes to verify diffusion and transmission levels before bulk production, ensuring no surprises.
Surface Finishes: Choose from Glossy Opal (easy to clean) or Matte Satin (resists fingerprints and glare). We can also apply a "Sandblasted" texture for a unique tactile feel.
Precision Cutting: We offer value-added cutting services to deliver tubes in exact fixture lengths (e.g., 595mm for grid lights), saving you assembly time.
Q: What is the difference between Opal and Frosted?
A: Opal is a solid white pigment that lights up; it hides components best. Frosted has a surface texture (like sandblasted glass) that diffuses light but is more translucent.
Q: Can you see the LED dots?
A: With our Opal Diffusion grade, you generally cannot see individual LED dots if the strip is placed centrally. For Frosted tubes, you may need a higher density LED strip (120+ LEDs/m) to achieve a dot-free look.
Q: Is it suitable for outdoor bollards?
A: Yes. Our acrylic is inherently UV stable and weather-resistant. It is the material of choice for outdoor garden lights and driveway bollards.
Q: What diameters do you stock?
A: We stock common lighting sizes like 50mm, 60mm, 80mm, and 100mm OD. Custom diameters can be extruded with a new die mold.
Achieve Flawless Lighting with Diffusion Technology
Upgrade your fixtures with JINBAO’s professional diffuser tubes.
Request a Light Transmission Sample Kit
