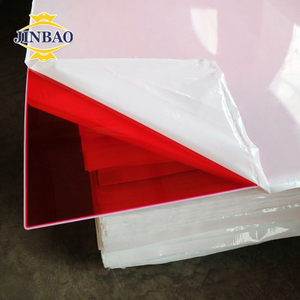

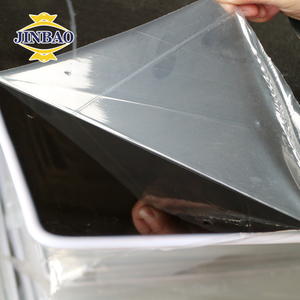

cast acrylic sheet
Top 10 reasons why customers choose JINBAO:
1. JINBAO is a professional acrylic and PVC sheet factory with 26 years history and more than 15 years of export experience !
2. Customer is our partner ! JINBAO aim to assist you expand market!
3. Have professional sales team more than 200 person, to help you solve the problem any time !
4. JINABO Promise will never release unqualified products !
6. Clear acrylic can reach 94 % high light transmittance ! Color acrylic no fade in 8-10 years outdoor !
7. Thickness tolerance less than +-0.1mm !
8. Super performance in laser cut, Uv print, glue no crack, no yellow !
9. Quality is life ! with strict quality control system,supervise the whole process from raw materials, production, quality inspection, packaging and delivery!
10. Professional after-sales team provides 24-hour online service !
This is our factory normal size
| Cast acryilic sheet | Net size /mm | Thickness rangeVymm: 1.5-300 | |||
| 1000*2000 | 1200*1800 | 1220*2440 | 122x*1830 | 1250*18250 | 1270*1870 |
| 1220*2440 | 1220*2450 | 1240*2460 | 1280*2500 | 1290*2510 | 1300*2500 |
| 1320*2540 | 1500*3000 | 1560*2580 | 1830*2440 | 2000*3000 | 2050*3050 |
| 2580*2600 | |||||
| Frosted acryiic sheet | Net size /mm | Thickness rangeVymm: 2.2-20 | |||
| 1200*2440 | 2000*3000 | ||||
| Extrude Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-20 | |||
| 1220*1830 | 1220*2440 | 2000*3000 | 2050*3050 | ||

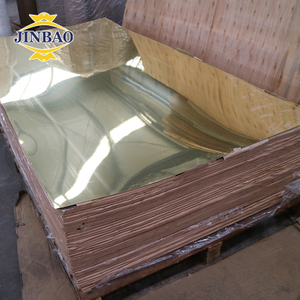

| Mirror Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-6 | |||
| 1000*2000 | 1220*1830 | 1220*2440 | |||

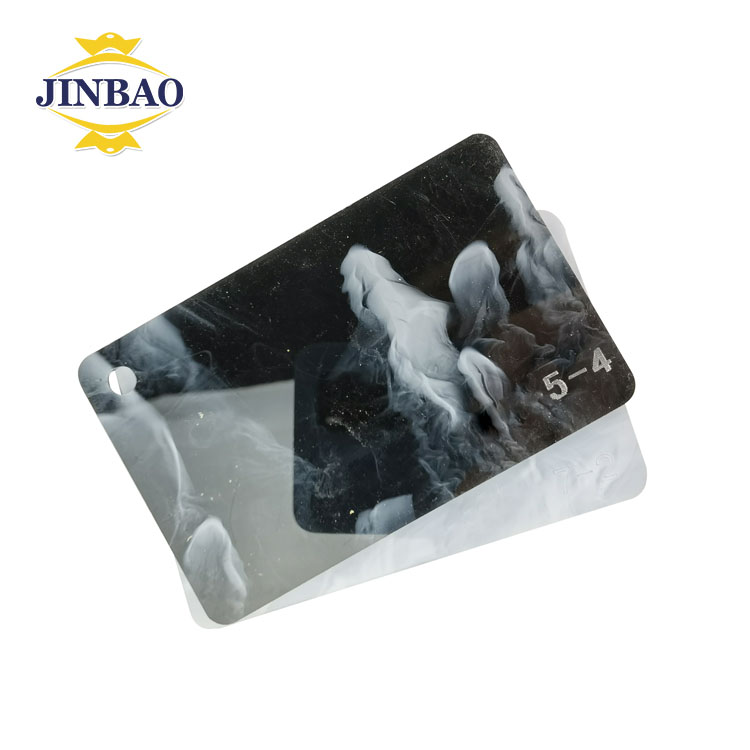

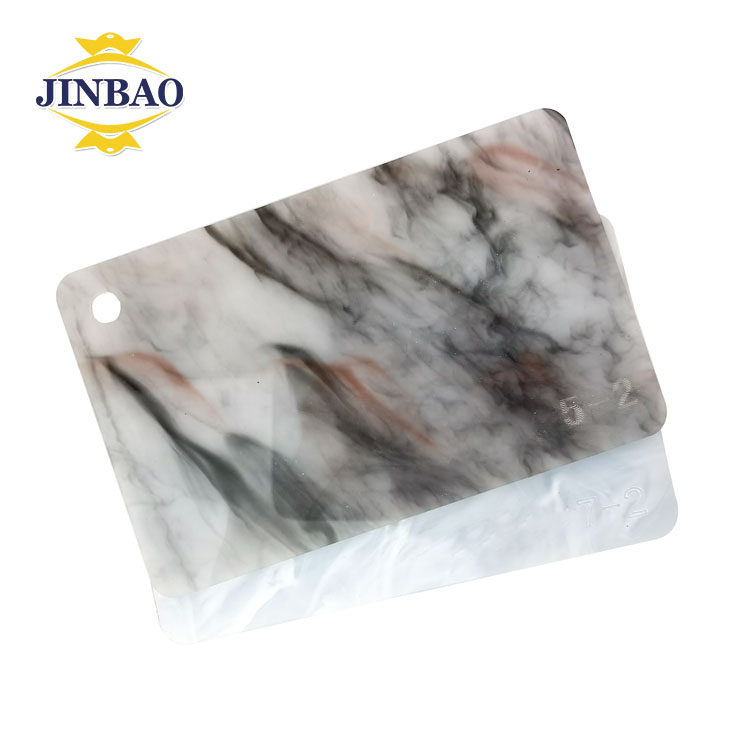

| Glitte/Marble Acrylic sheet | Net size /mm | Thickness rangeVymm: 2.3-30 | |||
| 580*1520 | 940*1540 | 960*1560 | 1200*1820 | 1220*2040 | 1220*2440 |
we can make products size according customer requirement !
Technical Properties
Rockwell Hardness | M-100 |
Shear Strength | 630Kg/cm2 |
Tensile Strength | 760Kg/cm2 |
Yield Strength | 1260Kg/cm2 |
Rupture Strength | 1050Kg/cm2 |
Light Transmittance | 94% |
Refractive Index | 1.49 |
Heat Distortion Temperature | 100℃ |
Thermal Forming Temperature | 140℃-180℃ |
Coefficient of linear Thermal Expansion | 6×10-5cm/cm/℃ |
Dielectric Strength | 20Kv/mm |
Water(24HRS)Absorption | 0.30% |
Welcome your inquiry, please leave your information, we will reply to you within 24 hours !
Jinbao Group was established in 1996 and its head office is located in the beautiful spring city-Jinan, Shandong province.
