cast acrylic sheet
why choose JINBAO
1. JINBAO is a professional acrylic and PVC sheet factory with 26 years history and more than 15 years of export experience !
2. Customer is our partner ! JINBAO aim to assist you expand market!
3.Have professional sales team more than 200 person, to help you solve the problem any time !
4. Pure Mitsubishi/Lucite raw materials, ensuring the quality from the production source !
5.Clear acrylic can reach 94 % high light transmittance ! Color acrylic no fade in 8-10 years outdoor !
6.Thickness tolerance less than +-0.1mm !
7.Super performance in laser cut, Uv print, glue no crack, no yellow !
8.Quality is life ! with strict quality control system,supervise the whole process from raw materials, production, quality inspection, packaging and delivery!
9. JINBAO have own delivery department, make sure fast delivery and regular feedback of production progress !
10. Professional after-sales team provides 24-hour online service !
This is our factory normal size
| Cast acryilic sheet | Net size /mm | Thickness rangeVymm: 1.5-300 | |||
| 1000*2000 | 1200*1800 | 1220*2440 | 122x*1830 | 1250*18250 | 1270*1870 |
| 1220*2440 | 1220*2450 | 1240*2460 | 1280*2500 | 1290*2510 | 1300*2500 |
| 1320*2540 | 1500*3000 | 1560*2580 | 1830*2440 | 2000*3000 | 2050*3050 |
| 2580*2600 | |||||
| Frosted acryiic sheet | Net size /mm | Thickness rangeVymm: 2.2-20 | |||
| 1200*2440 | 2000*3000 | ||||
| Extrude Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-20 | |||
| 1220*1830 | 1220*2440 | 2000*3000 | 2050*3050 | ||

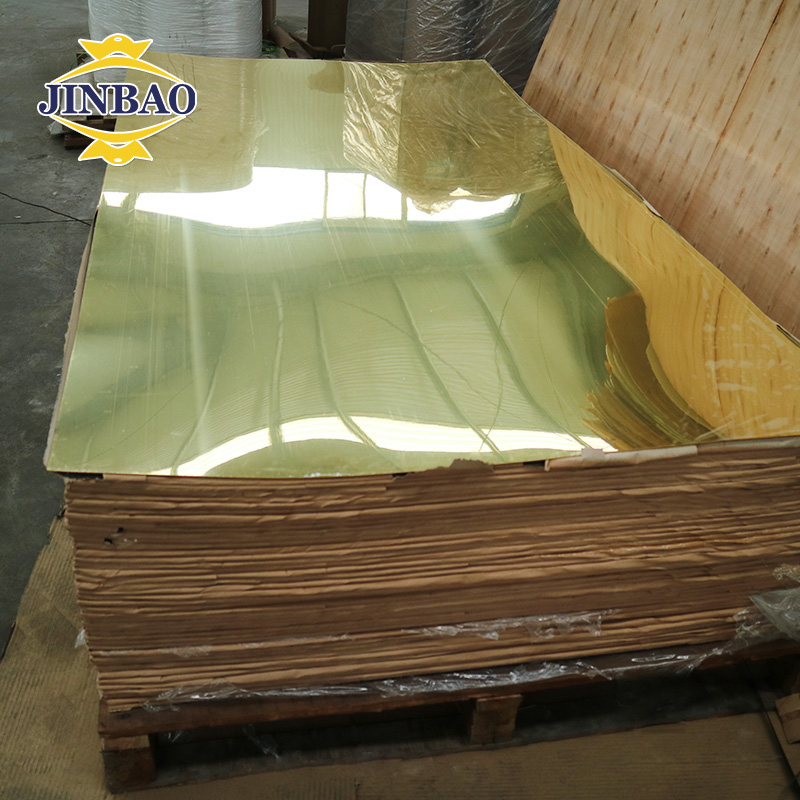

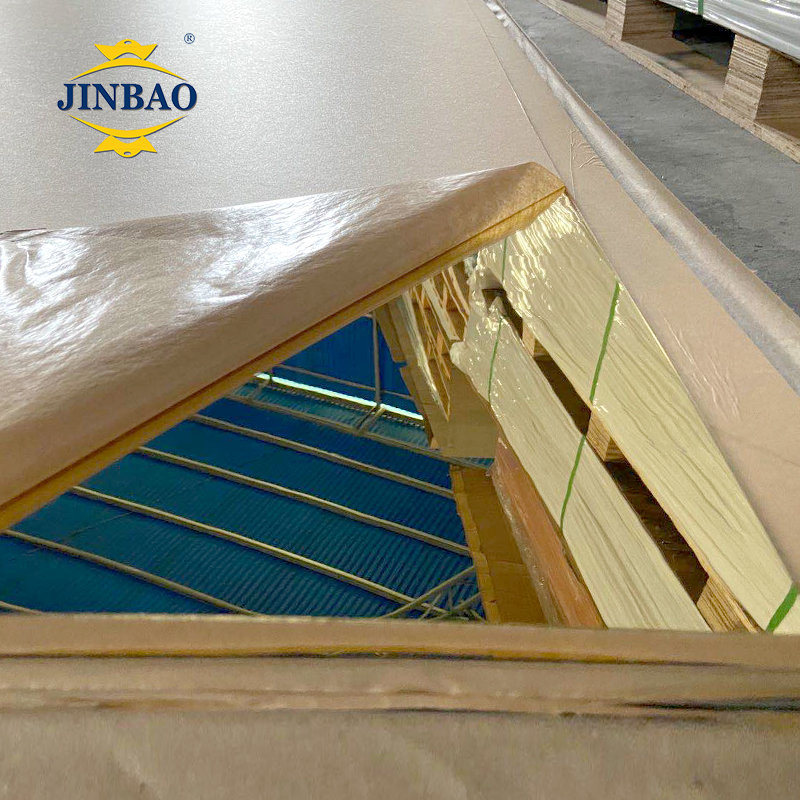

| Mirror Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-6 | |||
| 1000*2000 | 1220*1830 | 1220*2440 | |||
| Glitte/Marble Acrylic sheet | Net size /mm | Thickness rangeVymm: 2.3-30 | |||
| 580*1520 | 940*1540 | 960*1560 | 1200*1820 | 1220*2040 | 1220*2440 |
we can make products size according customer requirement!
Technical Properties
Rockwell Hardness | M-100 |
Shear Strength | 630Kg/cm2 |
Tensile Strength | 760Kg/cm2 |
Yield Strength | 1260Kg/cm2 |
Rupture Strength | 1050Kg/cm2 |
Light Transmittance | 94% |
Refractive Index | 1.49 |
Heat Distortion Temperature | 100℃ |
Thermal Forming Temperature | 140℃-180℃ |
Coefficient of linear Thermal Expansion | 6×10-5cm/cm/℃ |
Dielectric Strength | 20Kv/mm |
Water(24HRS)Absorption | 0.30% |
Production Process
Customer Visit
Certifications
◇ Certifications that our cast Acrylic sheet obtained: SGS, CE, ISOcertificate.
Please leave your contact information and we will get back to you as soon as possible!
Jinbao Group was established in 1996 and its head office is located in the beautiful spring city-Jinan, Shandong province.
