JINBAO thickness tolerance of JINBAO acrylic sheet is smaller than that of peers. Support print logo and sticker, Full container load packing: 20-23 tons(about 3000 pcs) of a 20 foot container with 10 -12 pallets .
JINBAO acrylic tolerance is smaller than the international tolerance plus or minus 0.2mm.Super performance in laser cut, Uv print, glue no crack, no yellow !
This is our factory normal size
| Cast acryilic sheet | Net size /mm | Thickness rangeVymm: 1.5-300 | |||
| 1000*2000 | 1200*1800 | 1220*2440 | 122x*1830 | 1250*18250 | 1270*1870 |
| 1220*2440 | 1220*2450 | 1240*2460 | 1280*2500 | 1290*2510 | 1300*2500 |
| 1320*2540 | 1500*3000 | 1560*2580 | 1830*2440 | 2000*3000 | 2050*3050 |
| 2580*2600 | |||||
| Frosted acryiic sheet | Net size /mm | Thickness rangeVymm: 2.2-20 | |||
| 1200*2440 | 2000*3000 | ||||
| Extrude Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-20 | |||
| 1220*1830 | 1220*2440 | 2000*3000 | 2050*3050 | ||

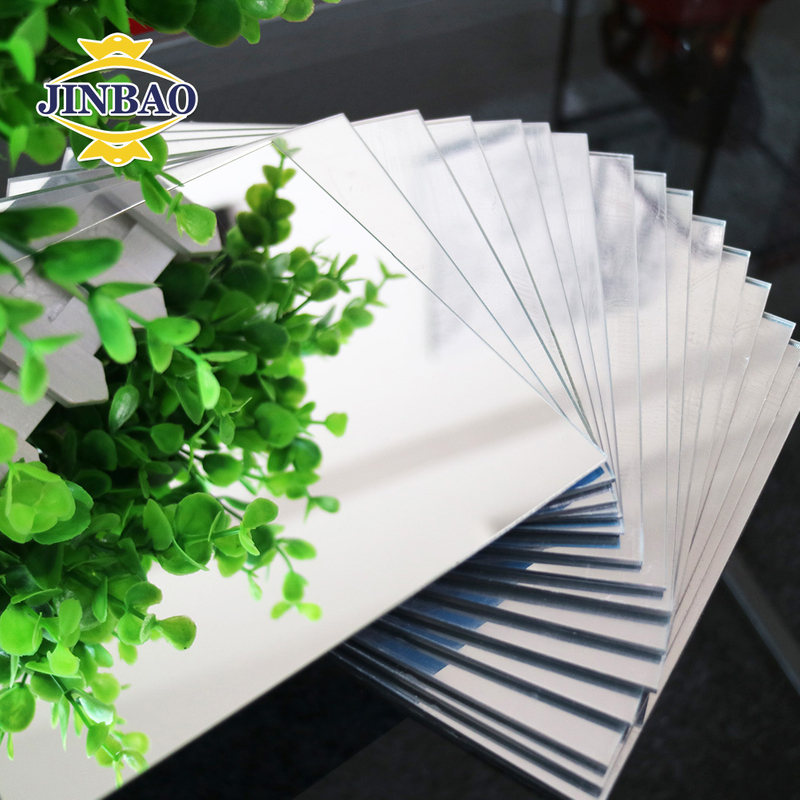

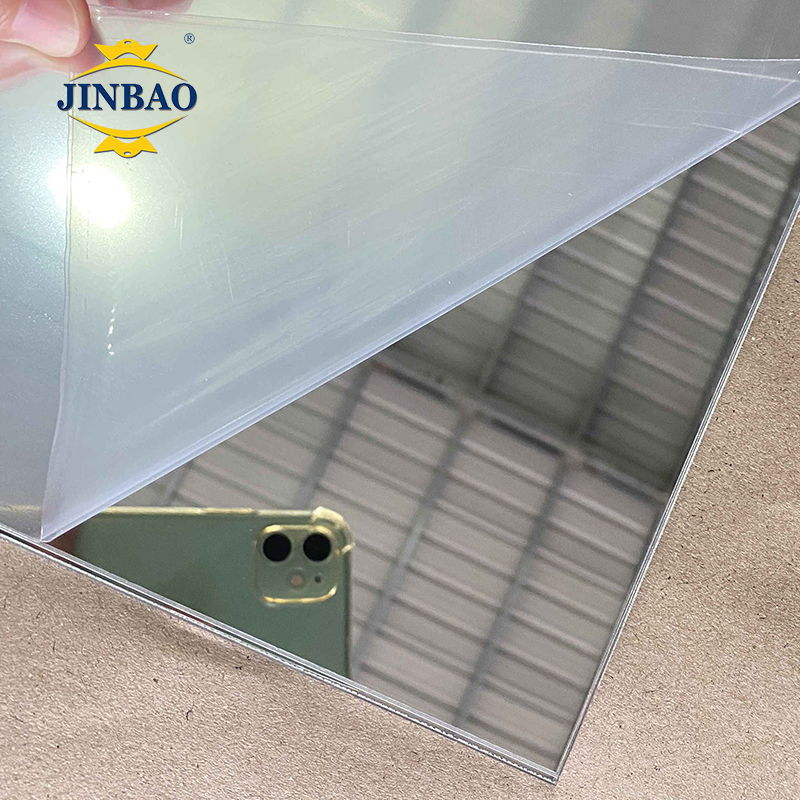

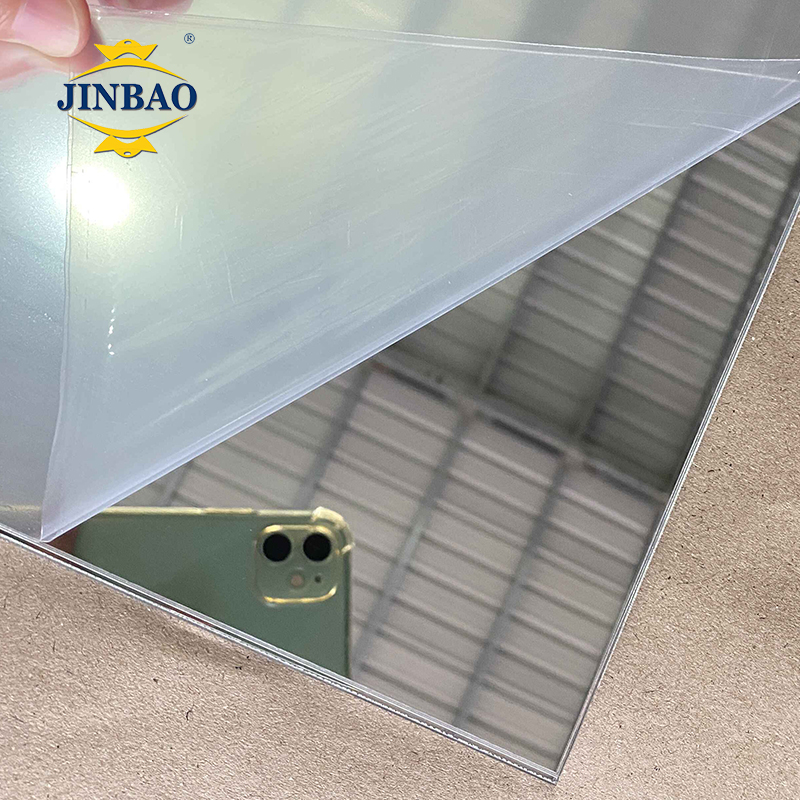

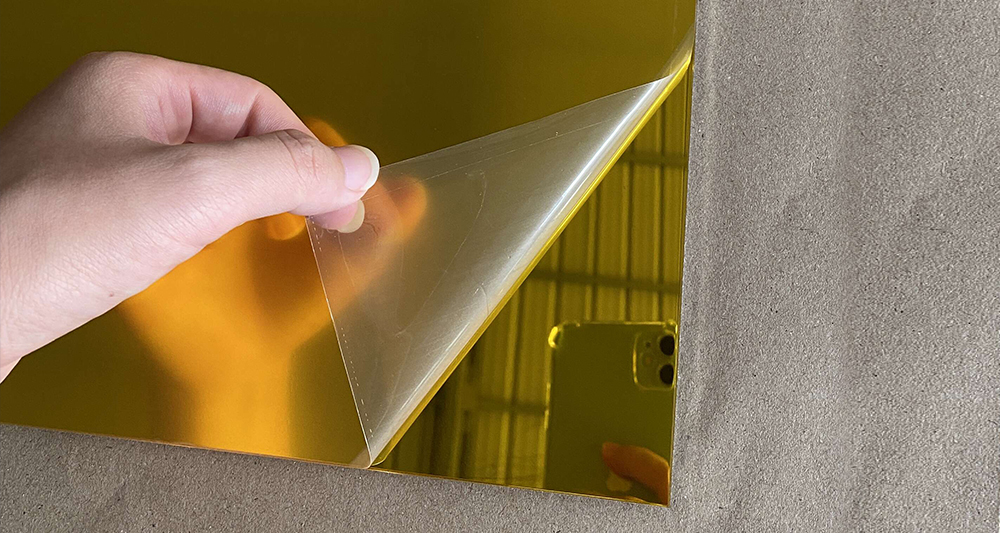

| Mirror Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-6 | |||
| 1000*2000 | 1220*1830 | 1220*2440 | |||
| Glitte/Marble Acrylic sheet | Net size /mm | Thickness rangeVymm: 2.3-30 | |||
| 580*1520 | 940*1540 | 960*1560 | 1200*1820 | 1220*2040 | 1220*2440 |
we can make products size according customer requirement!
Technical Properties
Rockwell Hardness | M-100 |
Shear Strength | 630Kg/cm2 |
Tensile Strength | 760Kg/cm2 |
Yield Strength | 1260Kg/cm2 |
Rupture Strength | 1050Kg/cm2 |
Light Transmittance | 94% |
Refractive Index | 1.49 |
Heat Distortion Temperature | 100℃ |
Thermal Forming Temperature | 140℃-180℃ |
Coefficient of linear Thermal Expansion | 6×10-5cm/cm/℃ |
Dielectric Strength | 20Kv/mm |
Water(24HRS)Absorption | 0.30% |
